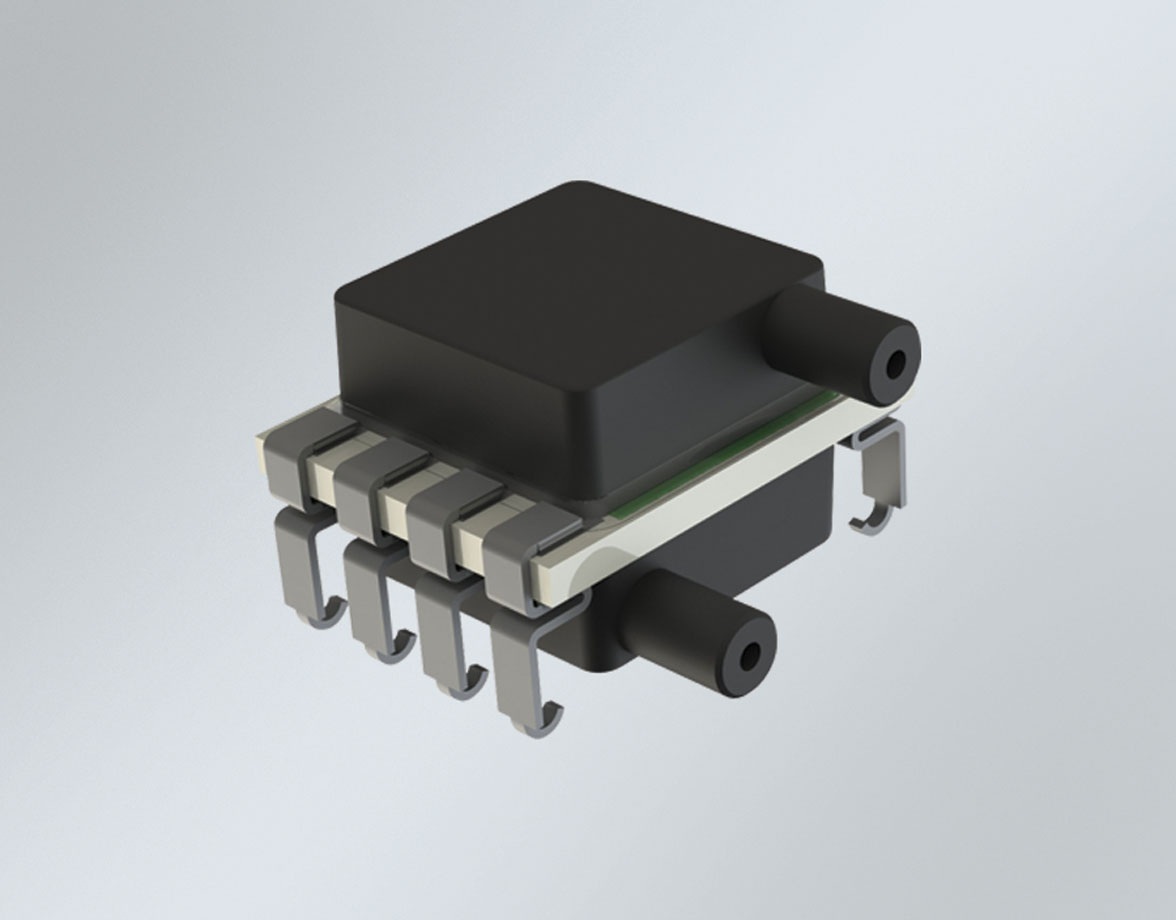

LP Series - Uncompensated is a surface mountable pressure sensor package with an uncompensated output suitable for ultra-low pressure sensing applications
SENTIUM: Merit Sensor products incorporate a proprietary Sentium® technology, developed to provide a best-in-class operating temperature range (-40°C to 150°C) and superior stability.
TECHNOLOGY: Merit Sensor utilizes a piezoresistive Wheatstone bridge in a design that anodically bonds glass to a chemically etched silicon diaphragm. All products are RoHS compliant.
CAPABILITIES: Merit Sensor designs, engineers, fabricates, dices, assembles, and tests products from a state-of-the-art facility near Salt Lake City, Utah.
FEATURES
Pressure: 1 to 28 inH2O / 250 to 6,900 Pa / 0.04 to 1 psi / 2.49 to 69 mbar
Accuracy: ±0.25 %FS (BFSL)
Temperature : -40 to 85 °C
Configuration: Differential or gauge/gage
Output: Uncompensated mV, analog 0.5 to 4.5 V, or digital I²C
Media: Clean, dry air and non-corrosive gases
Shipping: Tape and reel
Flexibility: Custom calibration upon request
TYPICAL APPLICATIONS
Industrial - Filters (air flow via ΔΡ and air pressure) - HVAC systems and control units - Sensors and transmitters
Medical - CPAP - Spirometers - Ventilators - Nebulizers
