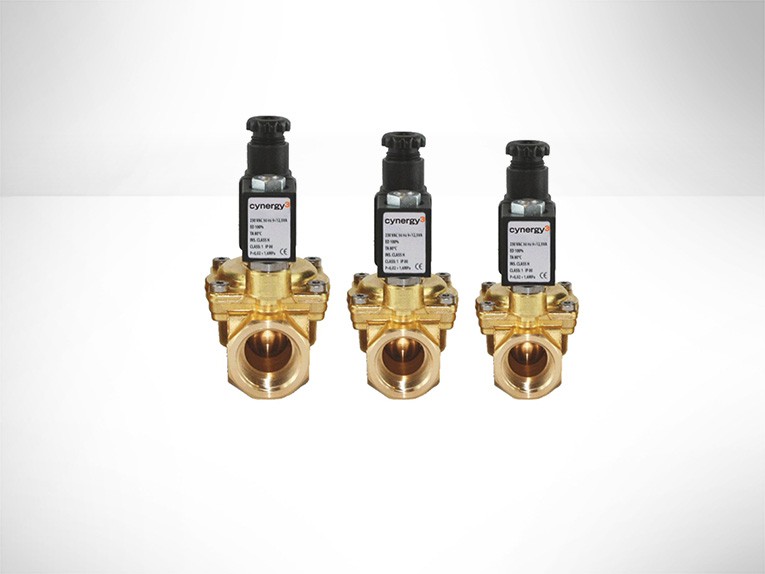

The SOL Series is a range of 2-way solenoid valves which are pilot-operated and are available in a choice of 110Vac, 230Vac or 24Vdc coils to suit the required voltage.

 Ideal for use in a wide range of industrial and commercial applications such as autoclaves, cooling plant and equipment, watering plant, fire extinguishing systems, hygienic & sanitary applications as well as water jet machinery and many other fluid control uses.

	Standard parts	Action	Coil voltage	Pipe size
	SOL1A1	NO	24Vdc	3/8"
	SOL1B1	NC	24Vdc	3/8"
	SOL1A3	NO	110Vac	3/8"
	SOL1B3	NC	110Vac	3/8"
	SOL1A4	NO	230Vac	3/8"
	SOL1B4	NC	230Vac	3/8"
	SOL2A1	NO	24Vdc	1/2"
	SOL2B1	NC	24Vdc	1/2"
	SOL2A3	NO	110Vac	1/2"
	SOL2B3	NC	110Vac	1/2"
	SOL2A4	NO	230Vac	1/2"
	SOL2B4	NC	230Vac	1/2"
	SOL3A1	NO	24Vdc	3/4"
	SOL3B1	NC	24Vdc	3/4"
	SOL3A3	NO	110Vac	3/4"
	SOL3B3	NC	110Vac	3/4"
	SOL3A4	NO	230Vac	3/4"
	SOL3B4	NC	230Vac	3/4"
	SOL4A1	NO	24Vdc	1"
	SOL4B1	NC	24Vdc	1"
	SOL4A3	NO	110Vac	1"
	SOL4B3	NC	110Vac	1"
	SOL4A4	NO	230Vac	1"
	SOL4B4	NC	230Vac	1"
	SOL5A1	NO	24Vdc	1-1/4"
	SOL5B1	NC	24Vdc	1-1/4"
	SOL5A3	NO	110Vac	1-1/4"
	SOL5B3	NC	110Vac	1-1/4"
	SOL5A4	NO	230Vac	1-1/4"
	SOL5B4	NC	230Vac	1-1/4"
	SOL6B1	NC	24Vdc	1-1/2"
	SOL6B3	NC	110Vac	1-1/2"
	SOL6A4	NO	230Vac	1-1/2"
	SOL6B4	NC	230Vac	1-1/2"
	SOL7B1	NC	24Vdc	2"
	SOL7B3	NC	110Vac	2"
	SOL7A4	NO	230Vac	2"
	SOL7B4	NC	230Vac	2"
