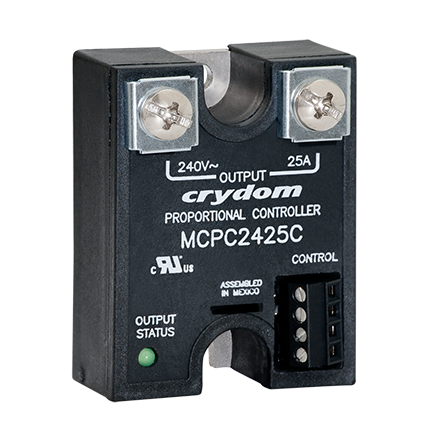

MCPC Series

Control Relays


  • /media/djcatalog2/images/item/14/mcpc-series.png
    • NEW !
    Manufacturer: Sensata BEI Kimco

    Phase angle control SSRs rating up to 90 Amps up to 530 VCA

      • Ratings from 25 to 90 Amps @ 48-530 VAC
      • Low-voltage, current, or potentiometer control
      • Output status indicator
      • Separate output enable / disable control
      • 0-100% Control Range
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    MCPC Series SSRs use microcontroller based circuitry to vary the firing angle at the output based on a changing input signal. These proportional control SSRs are perfect to control a wide range of resistive loads, with flexible input options.
    Additional features of the MCPC Series SSRs include:

    • Ratings from 25 to 90 Amps @ 48-530 VAC
    • Low-voltage, current, or potentiometer control
    • Output status indicator
    • Separate output enable / disable control
    • 0-100% Control Range
    Part Number Current Voltage Range Maximum Load Current Operating Voltage Range
    MCPC1225C 0-10 VDC 25 A 48-140 VAC
    MCPC1250C 0-10 VDC 50 A 48-140 VAC
    MCPC2425A 0-5 VDC 25 A 180-280 VAC
    MCPC2425C 0-10 VDC 25 A 180-280 VAC
    MCPC2425D 4-20 mA 25 A 180-280 VAC
    MCPC2450C 0-10 VDC 50 A 180-280 VAC
    MCPC2490C 0-10 VDC 90 A 180-280 VAC
    MCPC4825C 0-10 VDC 25 A 300-530 VAC
    MCPC4850C 0-10 VDC 50 A 300-530 VAC
    MCPC4850D 4-20 mA 50 A 300-530 VAC
