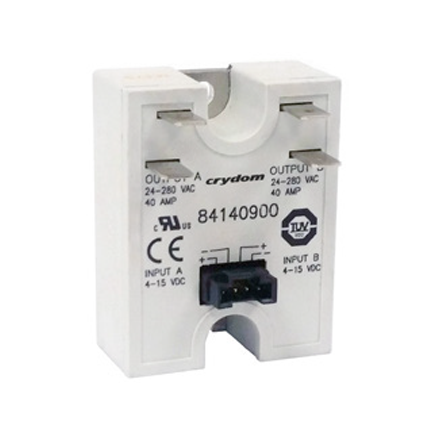

GN Dual Series

Panel Mount AC Output SSRs


  • /media/djcatalog2/images/item/13/2024-11-05-10-27-31.png

    Manufacturer: Sensata BEI Kimco

    Panel mounted dual channel AC Solid State Relays

      • 25 and 40 Amps at 24 to 660 VAC
      • 4000 VAC optical isolation
      • Zero voltage or instantaneous turn-on output
      • Optional input locking connector
      • Quick connect (faston) terminals
      • UL, CSA and TUV approved, CE compliant
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The GN Dual Series is a family of panel mounted dual channel AC Solid State Relays with reliable back-to-back SCR output and ratings of 25 and 40 Amps at 24 to 660 VAC.
    Additional features of the GN Dual Series SSRs include:

    • 4000 VAC optical isolation
    • Zero voltage or instantaneous turn-on output
    • Optional input locking connector
    • Quick connect (faston) terminals
    • UL, CSA and TUV approved, CE compliant
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    84140000 4-15 VDC 25 A 24-280 VAC
    84140010 17-32 VDC 25 A 24-280 VAC
    84140100 4-15 VDC 40 A 24-280 VAC
    84140110 17-32 VDC 40 A 24-280 VAC
    84140200 4-15 VDC 25 A 48-660 VAC
    84140210 17-32 VDC 25 A 48-660 VAC
    84140300 4-15 VDC 40 A 48-660 VAC
    84140310 17-32 VDC 40 A 48-660 VAC
    84140500 4-15 VDC 25 A 24-280 VAC
    84140501 17-32 VDC 25 A 24-280 VAC
    84140510 4-15 VDC 40 A 24-280 VAC
    84140511 17-32 VDC 40 A 24-280 VAC
    84140600 4-15 VDC 25 A 48-660 VAC
    84140601 17-32 VDC 25 A 48-660 VAC
    84140610 4-15 VDC 40 A 48-660 VAC
    84140611 17-32 VDC 40 A 48-660 VAC
    84140800 4-15 VDC 25 A 24-280 VAC
    84140801 17-32 VDC 25 A 24-280 VAC
    84140810 4-15 VDC 40 A 24-280 VAC
    84140811 17-32 VDC 40 A 24-280 VAC
    84140900 4-15 VDC 25 A 24-280 VAC
    84140901 17-32 VDC 25 A 24-280 VAC
    84140910 4-15 VDC 40 A 24-280 VAC
    84140911 17-32 VDC 40 A 24-280 VAC
