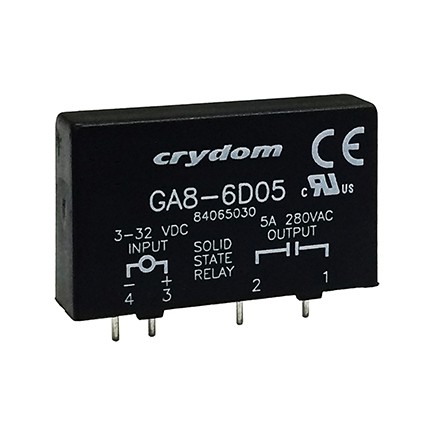

GA8 Series

PCB Mount AC Output SSRs


  • /media/djcatalog2/images/item/14/ga8-series.jpg

    Manufacturer: Sensata BEI Kimco

    PCB mount relays with ratings up to 5 Amps at 280 VAC

      • Industry Standard SIP Package
      • Cost effective TRIAC output
      • Horse Power Rated (E46203)
      • 4kV Optical Isolation
      • UL approved and CE compliant
      • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    GA8 Series PCB mount relays with ratings up to 5 Amps at 280 VAC.  These solid state relays are UL approved and CE compliant.
    Additional features of the GA8 Series SSRs include:

    • Industry Standard SIP Package
    • Cost effective TRIAC output
    • Horse Power Rated (E46203)
    • 4kV Optical Isolation
    • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    GA8-6B02 3-28 VDC 3.5 A 24-280 VAC
    GA8-6B02R 3-28 VDC 3.5 A 24-280 VAC
    GA8-6D05 3-28 VDC 5 A 24-280 VAC
    GA8-6D05R 3-28 VDC 5 A 24-280 VAC
