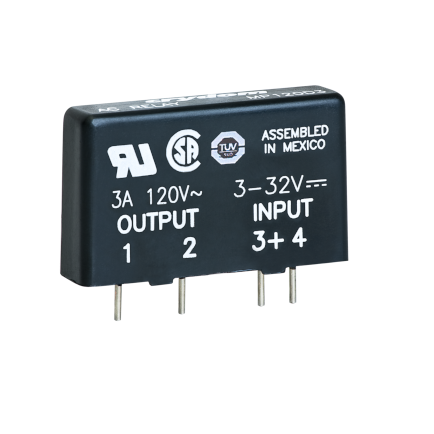

MP-Series | AC Output

PCB Mount AC Output SSRs


  • /media/djcatalog2/images/item/14/mp-series-ac-output.png
    • NEW !
    Manufacturer: Sensata BEI Kimco

    PCB Mount AC output Solid State Relays with TRIAC output ratings up to 4 Amps

      • DC control
      • UL, CSA and TUV approved
      • CE complaint to EN60950-1
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The MP Series PCB Mount AC output Solid State Relays offer a cost effective TRIAC output with ratings up to 4 Amps at 24 to 280 VAC.

    Additional features of the MP AC output SSR include:

    • DC control
    • UL, CSA and TUV approved
    • CE complaint to EN60950-1
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    MP120D3 3-32 VDC 3 A 12-140 VAC
    MP120D4 3-32 VDC 4 A 12-140 VAC
    MP240D3 3-32 VDC 3 A 24-280 VAC
    MP240D4 3-32 VDC 4 A 24-280 VAC
