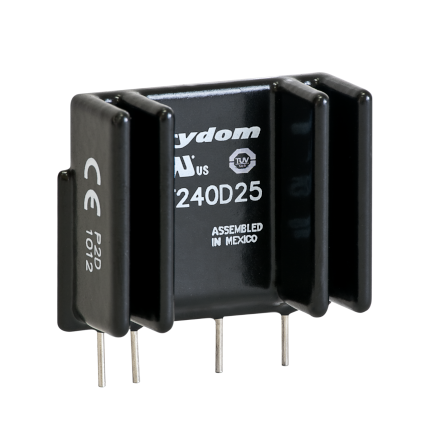

PF-Series

PCB Mount AC Output SSRs


  • /media/djcatalog2/images/item/14/pf-series.png
    • NEW !
    Manufacturer: Sensata BEI Kimco

    SIP style PCB Mount Solid State Relays ratings of 25 Amps

      • Back-to-back SCR output for heavy industrial loads
      • AC or DC control input
      • Zero voltage (resistive loads) or instantaneous (inductive loads) turn-on output
      • UL, CSA and TUV certified
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The PF Series is a family of SIP style PCB Mount Solid State Relays with ratings of 25 Amps (forced air) at operating voltages ranging from 12 to 660 VAC.

    Additional features of the PF Series PCB mounted AC SSRs include:

    • Back-to-back SCR output for heavy industrial loads
    • AC or DC control input
    • Zero voltage (resistive loads) or instantaneous (inductive loads) turn-on output
    • UL, CSA and TUV certified
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    PF240D25 3-15 VDC 25 A 12-280 VAC
    PF240D25R 3-15 VDC 25 A 12-280 VAC
    PF380D25 4-15 VDC 25 A 48-530 VAC
    PF380D25R 4-15 VDC 25 A 48-530 VAC
    PF480D25 4-15 VDC 25 A 48-660 VAC
    PFE240D25 15-32 VDC 25 A 12-280 VAC
    PFE380D25 15-32 VDC 25 A 48-530 VAC
    PFE380D25R 15-32 VDC 25 A 48-530 VAC
    PFE480D25 15-32 VDC 25 A 48-660 VAC
