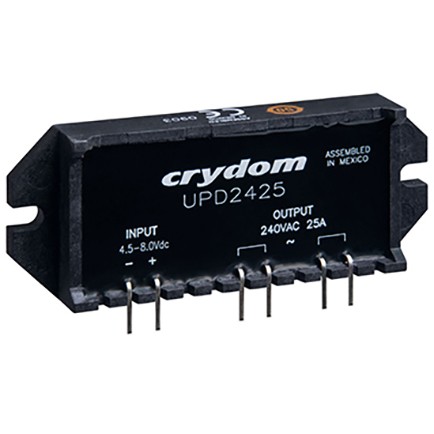

UPD Series | PCB Mount

PCB Mount AC Output SSRs


  • /media/djcatalog2/images/item/14/upd-series-pcb-mount.jpg
    • NEW !
    Manufacturer: Sensata BEI Kimco

    Compact SSRs ratings 15 to 25 Amps at 24-280 VAC

      • Available in single, dual channel and 3-phase configurations
      • UL approved and CE Compliant
      • SCR output for heavy industrial loads
      • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
      • Low Leakage (snubberless) output
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    UPD Series relays are compact SSRs with ratings of 15 to 25 Amps (using external heat sink) at 24-280 VAC and DC control input.
    Additional features of the UPD Series PCB Mount SSRs include:

    • Available in single, dual channel and 3-phase configurations
    • UL approved and CE Compliant
    • SCR output for heavy industrial loads
    • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
    • Low Leakage (snubberless) output
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    UPD2415 3-32 VDC 15 A 24-280 VAC
    UPD2415D 3-15 VDC 15 A 24-280 VAC
    UPD2415TP-10 4.5-8 VDC 15 A 24-280 VAC
    UPD2425 3-32 VDC 25 A 24-280 VAC
