CN-Series

Plug-in AC & DC Output SSRs

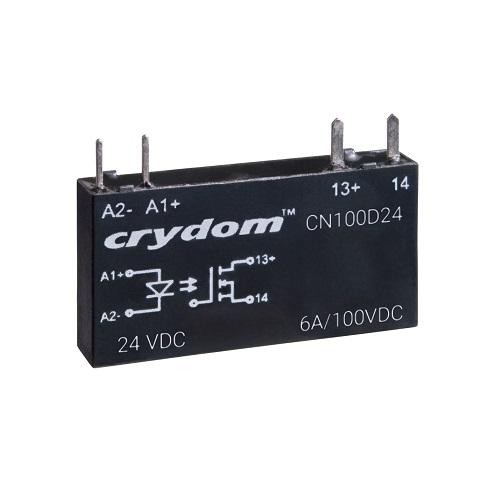

  • /media/djcatalog2/images/item/14/cn-series.jpg

    Manufacturer: Sensata BEI Kimco

    Plug-in Solid State Relays to be pluggable into industry standard relay sockets

      • 2 Amps at 24 to 280 VAC or 0.1 to 6 Amps at 0 to 100 VDC
      • 100K Cycle Endurance Test
      • UL recognized and CE compliant
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Sensata | Crydom CN Series Plug-in Solid State Relays are thin 5 mm wide relays designed to be pluggable into industry standard relay sockets or solderable into printed circuit boards. They are available in ratings of 2 Amps at 24 to 280 VAC or 0.1 to 6 Amps at 0 to 100 VDC, and they are UL recognized and CE compliant.

    Additional features of the CN Series AC & DC output plug-in SSRs include:

    • 5, 24 and 60 VDC control input
    • 100K Cycle Endurance Test

    For compatible sockets please look under SSR Accessories and DRSCN Series.

    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    CN024D05 3-12 VDC 3.5 A 0-24 VDC
    CN024D24 15-30 VDC 3.5 A 0-24 VDC
    CN048D05 3-12 VDC 100 mA 0-48 VDC
    CN048D24 15-30 VDC 100 mA 0-48 VDC
    CN100D05 3-12 VDC 6 A 0-100 VDC
    CN100D24 15-30 VDC 6 A 0-100 VDC
    CN240A05 3-12 VDC 2 A 24-280 VAC
    CN240A05R 3-12 VDC 2 A 24-280 VAC
    CN240A24 15-30 VDC 2 A 24-280 VAC
    CN240A24R 15-30 VDC 2 A 24-280 VAC
