ED-Series

Plug-in AC & DC Output SSRs

Manufacturer: Sensata BEI Kimco

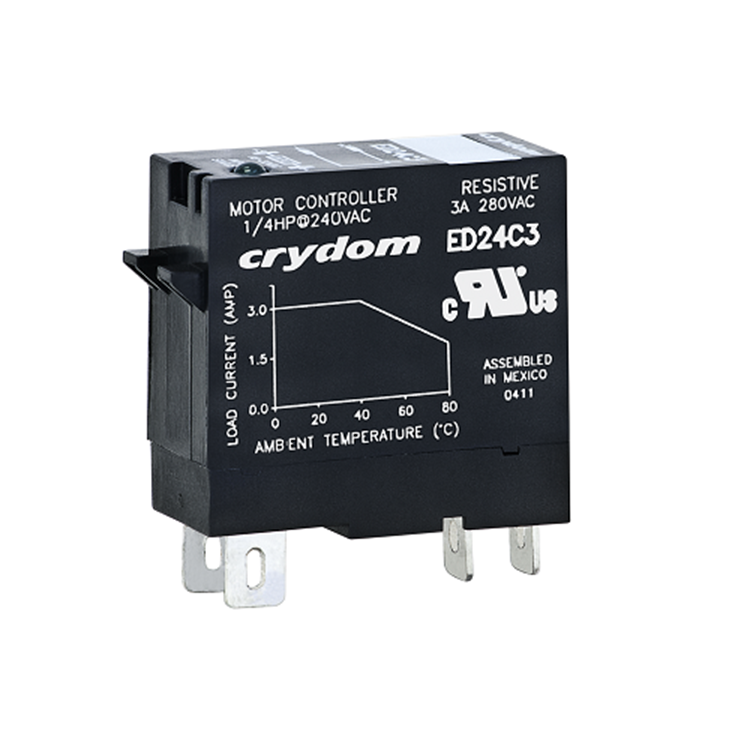

Plug-in Solid State Relays with industry standard 12 x 29 mm plug-in package

Main Features

- 1 to 5 Amps at 24 to 280 VAC and 5 to 10 Amps at 1 to 100 VDC
- Fit standard DIN rail and PCB mountable sockets
- AC or DC control
- LED input status indicator

Services

Professional and fast quote

Product usually available on stock

Delivery:

ASK for "Just in time" delivery

Questions?

+39 02 3340 0846
or Contact us

Description

Sensata | Crydom ED Series Plug-in Solid State Relays come in an industry standard 12 x 29 mm plug-in package and they are an excellent option to replace traditional Electromechanical Relays in many applications due to their substantial performance advantages. ED Series relays are available in a SPST N.O. configuration with output ratings of 1 to 5 Amps at 24 to 280 VAC and 5 to 10 Amps at 1 to 100 VDC. They are UL 508 recognized, IEC rated and CE compliant. Additional features of the ED Series plug-in SSRs include:

Fit standard DIN rail and PCB mountable sockets
AC or DC control
LED input status indicator

Part Number	Control Voltage Range	Maximum Load Current	Operating Voltage Range
ED06B5	90-140 VAC	5 A	1-48 VDC
ED06C5	18-32 VDC	5 A	1-48 VDC
ED06D5	5-15 VDC	5 A	1-48 VDC
ED06E5	18-36 VAC	5 A	1-48 VDC
ED06F5	48-72 VDC	5 A	1-48 VDC
ED10C10	18-32 VDC	10 A	1-100 VDC
ED10C5	18-32 VDC	5 A	1-80 VDC
ED10D10	5-15 VDC	10 A	1-100 VDC
ED10D5	5-15 VDC	5 A	1-80 VDC
ED10E5	18-36 VAC	5 A	1-80 VDC
ED10F5	48-72 VDC	5 A	1-80 VDC
ED24B5	90-140 VAC	5 A	24-280 VAC
ED24B5R	90-140 VAC	5 A	24-280 VAC
ED24C1	18.5-32 VDC	1 A	24-280 VAC
ED24C1R	18.5-32 VDC	1 A	24-280 VAC
ED24C3	18.5-32 VDC	3 A	24-280 VAC
ED24C3R	18.5-32 VDC	3 A	24-280 VAC
ED24C5	18.5-32 VDC	5 A	24-280 VAC
ED24C5R	18.5-32 VDC	5 A	24-280 VAC
ED24D3	3-15 VDC	3 A	24-280 VAC
ED24D3R	3-15 VDC	3 A	24-280 VAC
ED24D5	3-15 VDC	5 A	24-280 VAC
ED24D5R	3-15 VDC	5 A	24-280 VAC
ED24E5	18-36 VAC	5 A	24-280 VAC
ED24E5R	18-36 VAC	5 A	24-280 VAC
ED24F3	48-72 VDC	3 A	24-280 VAC
