PS-Neck Mounting Series

MIL-SPEC Thermal Circuit breakers

Manufacturer: Sensata Klixon®

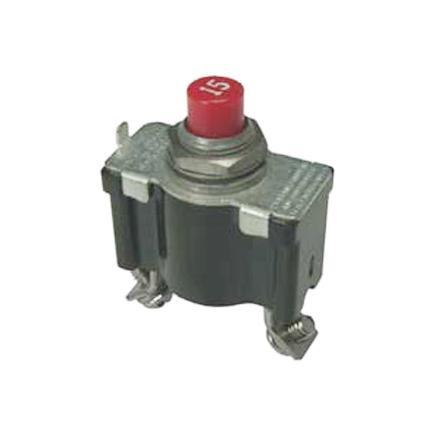

Precision Thermal Circuit Breaker PSM-XX-N

Main Features

- 30VDC, 2 to 35 Amps
- Manual reset neck mount circuit breaker

Services

Professional and fast quote

Product usually available on stock

Delivery:

ASK for "Just in time" delivery

Questions?

+39 02 3340 0846
or Contact us

Description

KLIXON® PSM-XX-N series of breakers are designed to interrupt short circuits or overloads and combines trip-free protection with fast response time. The PSM-XX-N series thermal breaker is ideal for commercial and military vehicle equipment where precise ultimate trip characteristics are required.

Specifications

Calibration : 200% rated current, 77°F (25°C)		2 to 10 amps : 20 to 150 seconds 12.5 to 35 amps : 8 to 50 seconds
Ultimate Trip At 77°F (25°C)		Must hold 100%, Must trip 138%
Endurance		Per SAE J553, 500 cycles @ 200%
Interrupt Current Capacity		Per SAE J553
Vibration		10G MIL-STD-202 Method 204, Condition A
Mechanical Shock		MIL-STD-202, Method 213, Condition C, 100G
Dielectric Strength		MIL-STD-202, Method 301, 1500VAC min
Insulation Resistance		MIL-STD 202, Method 302, Condition B, 100 MΩ min
