Semi-housed VCA

Voice Coil Actuators and motors


  • /media/djcatalog2/images/item/10/semi-housed-vca.png

    Manufacturer: Sensata BEI Kimco

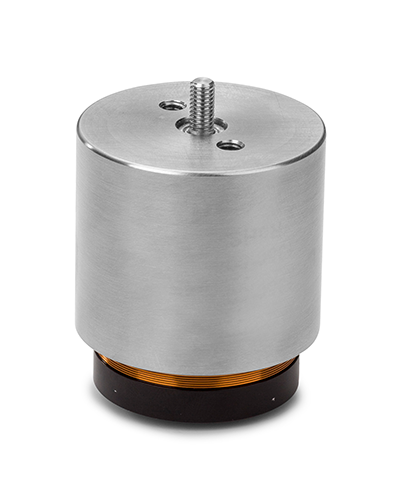

    Cylindrical Semi-housed Linear Voice Coil Actuator

      • Capable of withstanding billions of cycles of use
      • Constructed with high energy product rare earth magnets
      • Moving coil and moving magnet designs available
      • Wide offering of standard products, reducing lead time and cost
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Semi-housed voice coil actuators (VCA) enhance the basic frameless VCAs by adding both a shaft and self-aligning bushings to the unit. The lead wires have also been upgraded to a high flex variant, allowing for added protection from wear and tear. Various shaft options are available depending on the size of the actuator, including both external and internal threading, as well as a standard smooth shaft.

    • Precision shaft with multiple options available
    • Zero cogging and backlash free
    • Life tested in excess of 500 million cycles

    Motor Options:

    Part Number

    Peak Force
    [N/lb]

    Total Stroke
    [mm/in]

    Continuous Stall Force
    [N/lb]

    Actuator Constant
    [N∙Watt-1/2 / lb∙Watt-1/2]

    Outside Diameter
    [mm/in]

    LA13-11-001A-3E

    		 15.57/ 3.5 6.36/ 0.25 5.07/ 1.14 2.36/ 0.53 31.62/ 1.245

    LA13-11-001A-3S

    		 15.57/ 3.5 6.36/ 0.25 5.07/ 1.14 2.36/ 0.53 31.62/ 1.245

    LA16-16-001A-4E

    		 89/ 20 6.36/ 0.25 24.47/ 5.5 5.83/ 1.31 40/ 1.575

    LA16-16-001A-4S

    		 89/ 20 6.36/ 0.25 24.47/ 5.5 5.83/ 1.31 40/ 1.575

    LA28-43-001A-12E

    		 266.89/ 60 25/ 0.98 75.6/ 17 13.09/ 2.9 70/ 2.76

    LA28-43-001A-12I

    		 266.89/ 60 25/ 0.98 75.6/ 17 13.09/ 2.9 70/ 2.76

    LA28-43-001A-12S

    		 266.89/ 60 25/ 0.98 75.6 13.09/ 2.9 70/ 2.76

    LA100-93-001A-50I

    		 2447/ 500 50.8/ 2 1443/ 325 86.29/ 19.4 254/ 10

    LA100-93-001A-50S

    		 2447/ 500 50.8/ 2 1443/ 325 86.29/ 19.4 254/ 10
