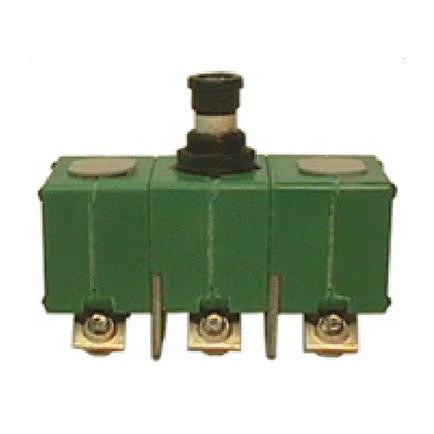

9TC series - 9TC14

MIL-SPEC Aircraft Circuit Breakers


  • /media/djcatalog2/images/item/16/9tc-series.jpg
    • NEW !
    Manufacturer: Sensata Klixon®

    Three-phase, standard High Amp circuit breaker, 15/32" Bushing SM Barrier

      • 15/32" Bushing SM Barrier
      • Light weight
      • Trip–free design
      • AS58091 qualified
      • Current rating: 1, 15 to 35 amp
      • High interrupting capacity
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    KLIXON® 9TC series circuit breakers provide ambient compensated circuit protection in a lightweight, sub-miniature package size. The three–phase integrally linked design provides overcurrent protection in the event of simultaneous or unbalanced overloads, including short circuit conditions.

    Features

    • Miniature size
    • Light weight
    • Trip–free design
    • AS58091 qualified
    • Current rating: 1, 15 to 35 amp
    • High interrupting capacity
    • Protective terminal barriers between each phase
    • Vibration pads improve mounting stability
    • One phase trips all
    • Includes features identical to Klixon® 2TC and 3TC series
    • Options include: longer push buttons, dust boot (part #14500-1 fits 15/32 bushing, part #14500-5 fits 7/16 bushing)

    Specifications

    Vibrations 10G minimum, 50–500 Hz
    Mechanical Shock 50G
    Acceleration 10G
    Weight 88 grams (without hardware)
    110 gram maximum (9TC14)
    Interrupt Current 1, 15–35 amps: 2,000 amps at 120 VAC, 400 Hz
    Endurance 2,500 cycles: 120 VAC, 400 Hz inductive
    5,000 cycles: 120 VAC, 400 Hz resistive
    5,000 cycles: Mechanical, no load
