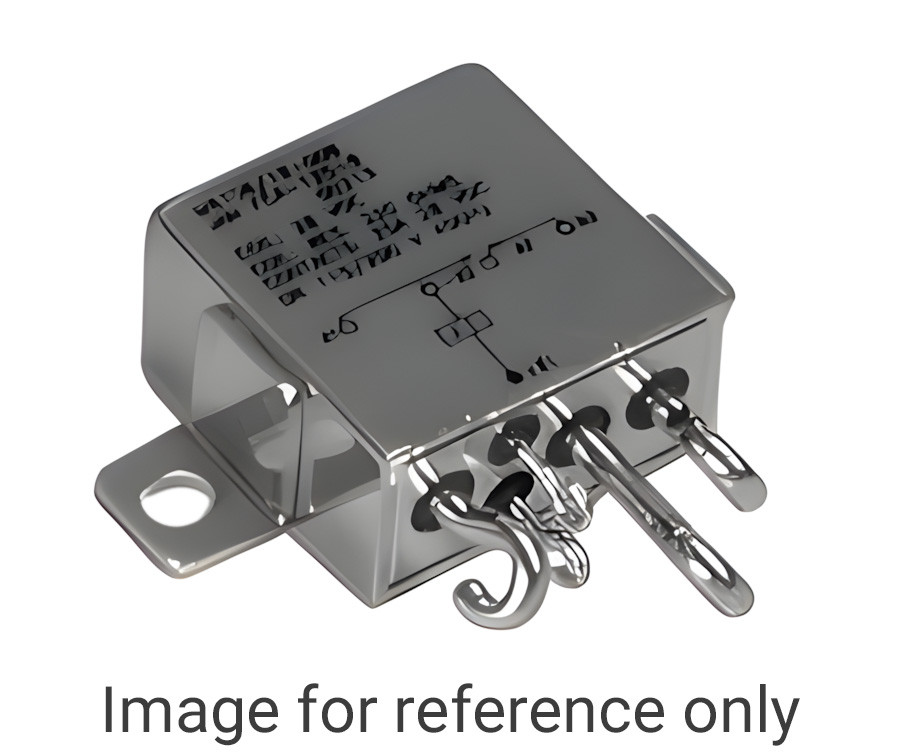

FCA-125

MIL-SPEC Power Relays


  • /media/djcatalog2/images/item/17/fca-125.jpg
    • NEW !
    Manufacturer: TE Connectivity

    Single-pole, Electrically Held, 25 Amps- M6106/19

      • Hermetically Sealed
      • All Welded Construction
      • Balanced Force
      • Permanent Magnet Drive
      • Contacts — Silver Cadmium Oxide with Gold Plating
      • Coils for DC, 50 to 400Hz and 400Hz AC
      • Weight 1.6 ounces max. (45.4 grams)
      • Qualified to M6106/19, M83536/36, /37
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The Series FCA-125 relay is a polarized single-side stable design, where the flux from a permanent magnet provides the armature holding force in the deactivated state, and its flux path is switched and combined with the coil flux in the operated state. This results in appreciably increased contact pressure in both states over that of a spring return nonpolar design.

    TE also manufactures other versions of this relay: FCA-325 — 25 Ampere 3PDT Relay FCAC-325 — 25 Ampere 3PST-NO Relay with 2 amp SPDT auxiliary.

    For further technical details please refer to datasheet below.
