FCAC-150

MIL-SPEC Power Relays

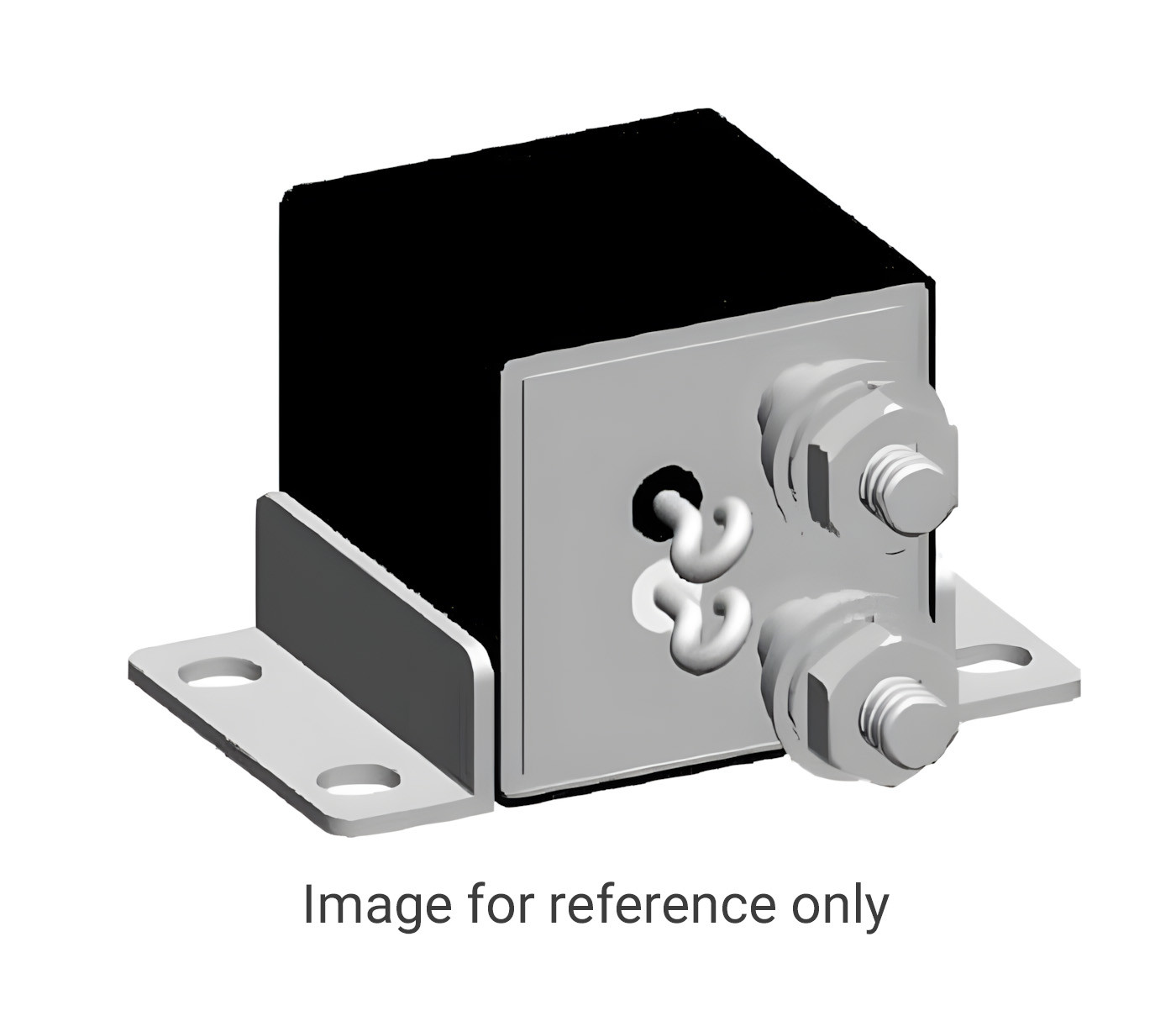

  • /media/djcatalog2/images/item/17/fca-150nc.1.jpg
    • NEW !
    Manufacturer: TE Connectivity

    Single Pole, Electrically Held, 50 Amps, with Auxiliary Contacts

      • Non-latching relay
      • Balanced force design
      • Corrosion protected metal enclosure
      • All welded hermetically sealed enclosure occupies about 1 in 3 (16.4 cm3)
      • 1 Form C (SPDT) auxiliary contact
      • 6, 12 and 28 Vdc coils
      • Weight: 90 grams
      • Designed and built in accordance to MIL-PRF-6106
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The FCAC-150 series relay is a polarized, single-side stable design, where the flux from a permanent magnet provides the armature holding force in the deactivated state, and its flux path is switched and combined with the coil flux in the operated state. This results in appreciably increased contact pressure in both states over that of a spring return non-polar design. A 1 form C (SPDT) auxiliary contact set rated 2 amps is available

    For further technical details please refer to datasheet below.
