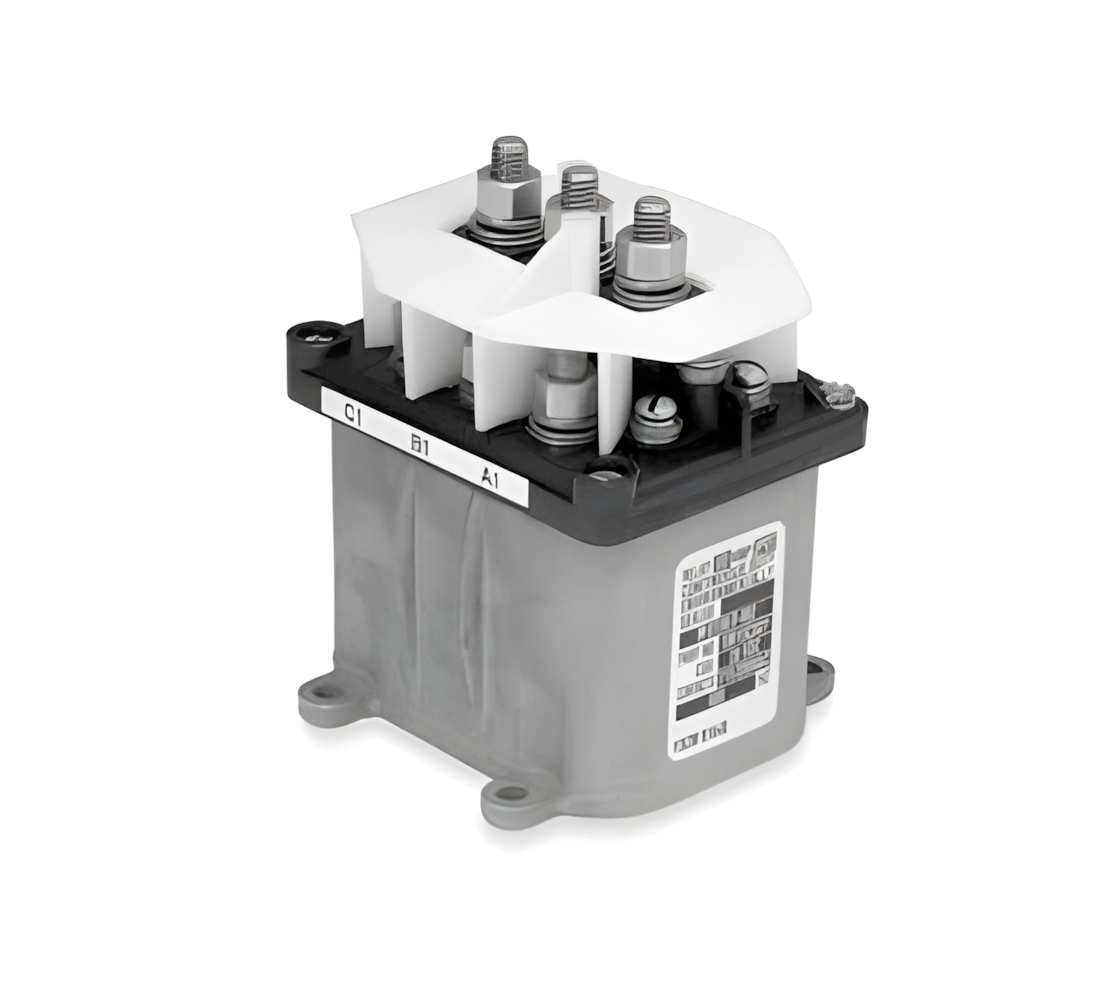

Power Relay - Environmentally Sealed Light-Weight, 3 Pole M6106/9, /10, /11

• Meets MIL-R-6106 Type IV
• Weight: 10.5 ounces (284 g)
• Altitude:
  -Rated: 50,000 feet
  -Extended: 80,000 feet
  with encapsulated terminals
• Ratings:
  -Voltage: 115/200 V, 400 Hz, 3Æ
  -Load Ratings:
  Resistive: 60 Amps
  Inductive: 60 Amps
  Motor: 40 Amps
  Minimum Current: 4 Amps
  Rupture: 400 Amps
• Environmental Seal: MIL-STD-
  202, METHOD 112 Test
  Condition C Procedure IV
• Seal: 6 x 10-4 STD CC/SEC
• Economizer Coil: 30 Vdc
  - Inrush: 1.25 Amps
  (20 milliseconds max)
  -Steady State: 0.25 Amps
