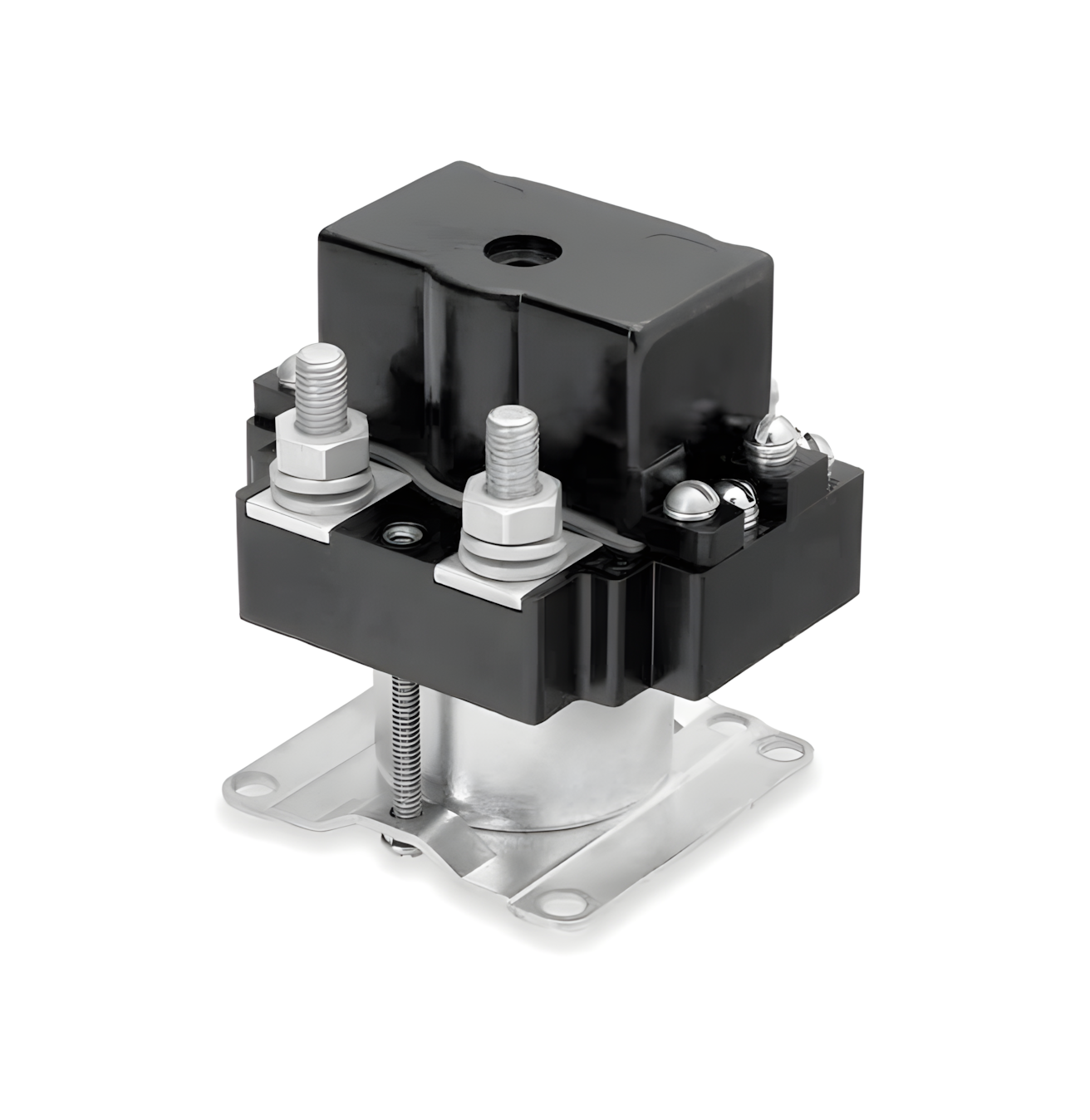

SM150D-

MIL-SPEC Power Relays


  • /media/djcatalog2/images/item/17/sm150d.png
    • NEW !
    Manufacturer: Safran

    Power Relay - Gasket Sealed, SPST-NO or SPDT, 150 Amps

      • 150 Amps
      • Design to meet the general requirements of MIL-R-6106 Type II continuous Duty Unsealed
      • Contacts are covered & gasketed
      • Double break contacts
      • All units are thermal breaker compatible at rated relay resistive load
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Power Relay - Gasket Sealed, SPST-NO, 150 Amps

    • Design to meet the general requirements of MIL-R-6106 Type II continuous Duty Unsealed
    • Contacts are covered & gasketed
    • Double break contacts
    • All units are thermal breaker compatible at rated relay resistive load
    • Some models available with auxiliary circuits
    • Gold-plated auxiliary contacts for low-level applications available
    • Auxiliary contacts ratings:
      - 28 Vdc: 5 amps resistive
      - 3 amps inductive
      - 2.5 amps lamp

    For further technical details see docs below or contact our team.
