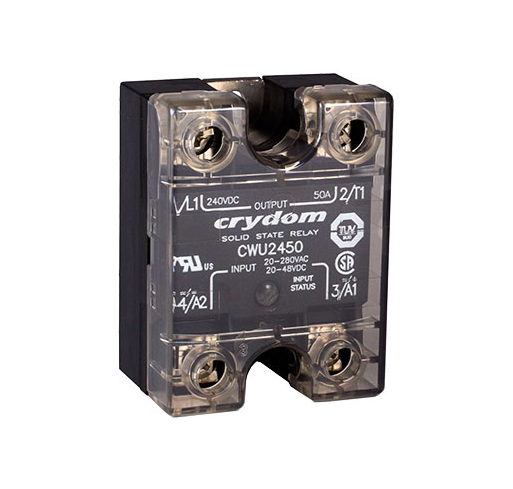

CW-Series

Panel Mount AC Output SSRs


  • /media/djcatalog2/images/item/13/cw-series.png

    Manufacturer: Sensata BEI Kimco

    SSR with back-to-back SCR output ratings from 10 Amps up to 125 Amps at 24 to 660 VAC

      • high performing SSR with output ratings from 10 Amps up to 125 Amps at 24 to 660 VAC
      • back-to-back SCR output
      • DBC substrate for superior thermal performance
      • 3-32 VDC, 18-36 VAC, 90-280 VAC and universal AC/DC control input options
      • LED input indicator
      • EMC compliant to Level 3
      • C-UL-US recognized, CE and RoHS compliant
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The CW Series Panel Mount AC output Solid State Relays offer a back-to-back SCR output for reliable switching of commercial and heavy industrial loads. This type of high performing SSR is available with output ratings from 10 Amps up to 125 Amps at 24 to 660 VAC.

    The CW Series panel mount solid state relay includes a removable IP20 touch-safe cover for added safety and is also available with zero voltage turn-on (for resistive loads) or instantaneous turn-on (for inductive loads) outputs. Additional features of the CW Series panel mount SSRs include:

    • DBC substrate for superior thermal performance
    • 3-32 VDC, 18-36 VAC, 90-280 VAC and universal AC/DC control input options
    • LED input indicator
    • EMC compliant to Level 3
    • C-UL-US recognized, CE and RoHS compliant
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    CWA2410 90-280 VAC 10 A 24-280 VAC
    CWA2410-10 90-280 VAC 10 A 24-280 VAC
    CWA2410E 18-36 VAC 10 A 24-280 VAC
    CWA2410H 18-36 VAC 10 A 24-280 VAC
    CWA2410P 18-36 VAC 10 A 24-280 VAC
    CWA24125 90-280 VAC 125 A 24-280 VAC
    CWA24125-10 90-280 VAC 125 A 24-280 VAC
    CWA24125E 18-36 VAC 125 A 24-280 VAC
    CWA24125P 18-36 VAC 125 A 24-280 VAC
    CWA2425 90-280 VAC 25 A 24-280 VAC
    CWA2425-10 90-280 VAC 25 A 24-280 VAC
    CWA2425E 18-36 VAC 25 A 24-280 VAC
    CWA2425P 18-36 VAC 25 A 24-280 VAC
    CWA2425H 18-36 VAC 25 A 24-280 VAC
    CWA2450 90-280 VAC 50 A 24-280 VAC
    CWA2450-10 90-280 VAC 50 A 24-280 VAC
    CWA2450E 18-36 VAC 50 A 24-280 VAC
    CWA2450H 18-36 VAC 50 A 24-280 VAC
    CWA2450P 18-36 VAC 50 A 24-280 VAC
    CWA2490 90-280 VAC 90 A 24-280 VAC
    CWA2490-10 90-280 VAC 90 A 24-280 VAC
    CWA2490E 18-36 VAC 90 A 24-280 VAC
    CWA2490P 18-36 VAC 90 A 24-280 VAC
    CWA4810 90-280 VAC 10 A 48-660 VAC
    CWA4810-10 90-280 VAC 10 A 48-660 VAC
    CWA4810E 18-36 VAC 10 A 48-660 VAC
    CWA4810P 18-36 VAC 10 A 48-660 VAC
    CWA48125 90-280 VAC 125 A 48-660 VAC
    CWA48125-10 90-280 VAC 125 A 48-660 VAC
    CWA48125E 18-36 VAC 125 A 48-660 VAC
    CWA48125E-10 18-36 VAC 125 A 48-660 VAC
    CWA48125P 18-36 VAC 125 A 48-660 VAC
    CWA4825 90-280 VAC 25 A 48-660 VAC
    CWA4825-10 90-280 VAC 25 A 48-660 VAC
    CWA4825E 18-36 VAC 25 A 48-660 VAC
    CWA4825P 18-36 VAC 25 A 48-660 VAC
    CWA4850 90-280 VAC 50 A 48-660 VAC
    CWA4850-10 90-280 VAC 50 A 48-660 VAC
    CWA4850E 18-36 VAC 50 A 48-660 VAC
    CWA4850H 18-36 VAC 50 A 48-660 VAC
    CWA4850P 18-36 VAC 50 A 48-660 VAC
    CWA4890 90-280 VAC 90 A 48-660 VAC
    CWA4890-10 90-280 VAC 90 A 48-660 VAC
    CWA4890E 18-36 VAC 90 A 48-660 VAC
    CWA4890H 18-36 VAC 90 A 48-660 VAC
    CWA4980P 18-36 VAC 90 A 48-660 VAC
    CWD2410 3-32 VDC 10 A 24-280 VAC
    CWD2410-10 3-32 VDC 10 A 24-280 VAC
    CWD2410H 3-32 VDC 10 A 24-280 VAC
    CWD2410P 3-32 VDC 10 A 24-280 VAC
    CWD24125 3-32 VDC 125 A 24-280 VAC
    CWD24125-10 3-32 VDC 125 A 24-280 VAC
    CWD24125P 3-32 VDC 125 A 24-280 VAC
    CWD2425 3-32 VDC 25 A 24-280 VAC
    CWD2425-10 3-32 VDC 25 A 24-280 VAC
    CWD2425H 3-32 VDC 25 A 24-280 VAC
    CWD2425P 3-32 VDC 25 A 24-280 VAC
    CWD2425P-10 3-32 VDC 25 A 24-280 VAC
    CWD2425PH 3-32 VDC 25 A 24-280 VAC
    CWD2450 3-32 VDC 50 A 24-280 VAC
    CWD2450-10 3-32 VDC 50 A 24-280 VAC
    CWD2450H 3-32 VDC 50 A 24-280 VAC
    CWD2450P 3-32 VDC 50 A 24-280 VAC
    CWD2490 3-32 VDC 90 A 24-280 VAC
    CWD2490-10 3-32 VDC 90 A 24-280 VAC
    CWD2490P 3-32 VDC 90 A 24-280 VAC
    CWD4810 4-32 VDC 10 A 48-660 VAC
    CWD4810-10 4-32 VDC 10 A 48-660 VAC
    CWD4810P 4-32 VDC 10 A 48-660 VAC
    CWD48125 4-32 VDC 125 A 48-660 VAC
    CWD48125-10 4-32 VDC 125 A 48-660 VAC
    CWD48125P 4-32 VDC 125 A 48-660 VAC
    CWD48125P-10 4-32 VDC 125 A 48-660 VAC
    CWD4825 4-32 VDC 25 A 48-660 VAC
    CWD4825-10 4-32 VDC 25 A 48-660 VAC
    CWD4825H 4-32 VDC 25 A 48-660 VAC
    CWD4825P 4-32 VDC 25 A 48-660 VAC
    CWD4825P-10 4-32 VDC 25 A 48-660 VAC
    CWD4850 4-32 VDC 50 A 48-660 VAC
    CWD4850-10 4-32 VDC 50 A 48-660 VAC
    CWD4850H 4-32 VDC 50 A 48-660 VAC
    CWD4850P 4-32 VDC 50 A 48-660 VAC
    CWD4850P-10 4-32 VDC 50 A 48-660 VAC
    CWD4850PH 4-32 VDC 50 A 48-660 VAC
    CWD4890 4-32 VDC 90 A 48-660 VAC
    CWD4890-10 4-32 VDC 90 A 48-660 VAC
    CWD4890H 4-32 VDC 90 A 48-660 VAC
    CWD4890P 4-32 VDC 90 A 48-660 VAC
    CWD4890PH 4-32 VDC 90 A 48-660 VAC
    CWU2410 20-48 VDC/20-280 VAC 10 A 24-280 VAC
    CWU2410-10 20-48 VDC/20-280 VAC 10 A 24-280 VAC
    CWU2410P 20-48 VDC/20-280 VAC 10 A 24-280 VAC
    CWU2410P-10 20-48 VDC/20-280 VAC 10 A 24-280 VAC
    CWU24125 20-48 VDC/20-280 VAC 125 A 24-280 VAC
    CWU24125-10 20-48 VDC/20-280 VAC 125 A 24-280 VAC
    CWU24125P 20-48 VDC/20-280 VAC 125 A 24-280 VAC
    CWU24125P-10 20-48 VDC/20-280 VAC 125 A 24-280 VAC
    CWU2425 20-48 VDC/20-280 VAC 25 A 24-280 VAC
    CWU2425-10 20-48 VDC/20-280 VAC 25 A 24-280 VAC
    CWU2425P 20-48 VDC/20-280 VAC 25 A 24-280 VAC
    CWU2425P-10 20-48 VDC/20-280 VAC 25 A 24-280 VAC
    CWU2450 20-48 VDC/20-280 VAC 50 A 24-280 VAC
    CWU2450-10 20-48 VDC/20-280 VAC 50 A 24-280 VAC
    CWU2450P 20-48 VDC/20-280 VAC 50 A 24-280 VAC
    CWU2450P-10 20-48 VDC/20-280 VAC 50 A 24-280 VAC
    CWU2490 20-48 VDC/20-280 VAC 90 A 24-280 VAC
    CWU2490-10 20-48 VDC/20-280 VAC 90 A 24-280 VAC
    CWU2490P 20-48 VDC/20-280 VAC 90 A 24-280 VAC
    CWU2490P-10 20-48 VDC/20-280 VAC 90 A 24-280 VAC
    CWU4810 20-48 VDC/20-280 VAC 10 A 48-660 VAC
    CWU4810-10 20-48 VDC/20-280 VAC 10 A 48-660 VAC
    CWU4810P 20-48 VDC/20-280 VAC 10 A 48-660 VAC
    CWU4810P-10 20-48 VDC/20-280 VAC 10 A 48-660 VAC
    CWU48125 20-48 VDC/20-280 VAC 125 A 48-660 VAC
    CWU48125-10 20-48 VDC/20-280 VAC 125 A 48-660 VAC
    CWU48125P 20-48 VDC/20-280 VAC 125 A 48-660 VAC
    CWU48125P-10 20-48 VDC/20-280 VAC 125 A 48-660 VAC
    CWU4825 20-48 VDC/20-280 VAC 25 A 48-660 VAC
    CWU4825-10 20-48 VDC/20-280 VAC 25 A 48-660 VAC
    CWU4825P 20-48 VDC/20-280 VAC 25 A 48-660 VAC
    CWU4825P-10 20-48 VDC/20-280 VAC 25 A 48-660 VAC
    CWU4850 20-48 VDC/20-280 VAC 50 A 48-660 VAC
    CWU4850-10 20-48 VDC/20-280 VAC 50 A 48-660 VAC
    CWU4850P 20-48 VDC/20-280 VAC 50 A 48-660 VAC
    CWU4850P-10 20-48 VDC/20-280 VAC 50 A 48-660 VAC
    CWU4890 20-48 VDC/20-280 VAC 90 A 48-660 VAC
    CWU4890-10 20-48 VDC/20-280 VAC 90 A 48-660 VAC
    CWU4890P 20-48 VDC/20-280 VAC 90 A 48-660 VAC
    CWU4890P-10 20-48 VDC/20-280 VAC 90 A 48-660 VAC
