DPI Series

Panel Mount AC Output SSRs

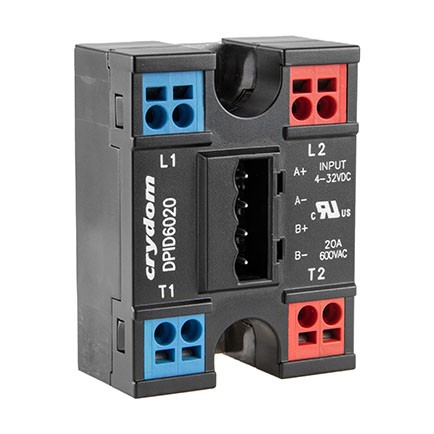

  • /media/djcatalog2/images/item/13/dpi-series.jpg

    Manufacturer: Sensata BEI Kimco

    Hockey puck style, dual channel AC output Solid State Relays

      • Hockey puck style, dual channel AC output
      • Ratings of 20 and 40 Amps at 24 to 600 VAC
      • Two outputs controlled by two independent DC control inputs
      • Different types of header connectors available (not included)
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Sensata | Crydom DPI Series is a family of hockey puck style, dual channel AC output Solid State Relays with easy to wire push-in connections, offering improved mechanical and thermal design compared to similar solutions in the market. These dual output SSRs are available with ratings of 20 and 40 Amps at 24 to 600 VAC.

    DPI Series Dual SSRs have two outputs controlled by two independent DC control inputs, and the input connector is compatible with different types of header connectors (not included). This connector has a pitch of 5.08 mm, allowing for greater flexibility when wiring the input connections.

    Part Number Control Voltage Maximum Load Current Operating Voltage Range Output Mode
    DPID2420 4 - 32 VDC 20 A 24 - 280 VAC Zero voltage turn-on
    DPID2420H 4 - 32 VDC 20 A 24 - 280 VAC Zero voltage turn-on
    DPID2420R 4 - 32 VDC 20 A 24 - 280 VAC Instantaneous turn-on
    DPID2420RH 4 - 32 VDC 20 A 24 - 280 VAC Instantaneous turn-on
    DPID2440 4 - 32 VDC 40 A 24 - 280 VAC Zero voltage turn-on
    DPID2440H 4 - 32 VDC 40 A 24 - 280 VAC Zero voltage turn-on
    DPID2440R 4 - 32 VDC 40 A 24 - 280 VAC Instantaneous turn-on
    DPID2440RH 4 - 32 VDC 40 A 24 - 280 VAC Instantaneous turn-on
    DPID6020 4 - 32 VDC 20 A 48 - 600 VAC Zero voltage turn-on
    DPID6020H 4 - 32 VDC 20 A 48 - 600 VAC Zero voltage turn-on
    DPID6020R 4 - 32 VDC 20 A 48 - 600 VAC Instantaneous turn-on
    DPID6020RH 4 - 32 VDC 20 A 48 - 600 VAC Instantaneous turn-on
    DPID6040 4 - 32 VDC 40 A 48 - 600 VAC Zero voltage turn-on
    DPID6040H 4 - 32 VDC 40 A 48 - 600 VAC Zero voltage turn-on
    DPID6040R 4 - 32 VDC 40 A 48 - 600 VAC Instantaneous turn-on
    DPID6040RH 4 - 32 VDC 40 A 48 - 600 VAC Instantaneous turn-on
