RXC61

Contactors

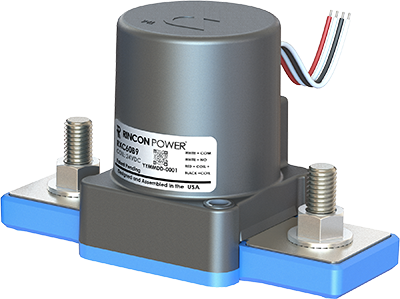

  • /media/djcatalog2/images/item/13/rxc61.png

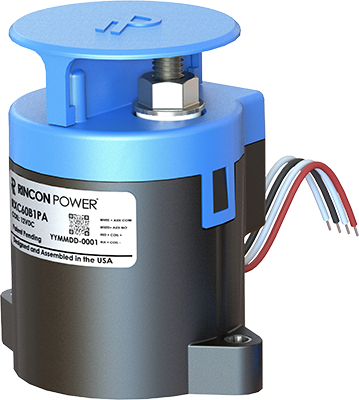

  • /media/djcatalog2/images/item/13/rxc61.1.png
    • UPDATED !
    Manufacturer: RinconPower
    • Continuous Current: 600A
    • Rated Voltage: 1500 VDC
    • Coil Voltage: 12V | 24V | 48V
    • Chassis or Bottom mount available
      • SPST Normally Open High Voltage Contactors
      • Hermetic Ceramic Seal with gas fill for superior carry and switching performance
      • Bi-Directional Power Switching
      • Mechanically linked auxiliary contacts for accurate main position feedback
      • Integrated coil economizer for optimized power consumption
      • Integrated coil suppression with zero back EMF4
      • Meets RoHS 2011/65/EU
      • IEC60947-4-1 compliant
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The RXC61 Series are hermetically sealed high voltage DC contactors designed for high-current power switching in demanding applications. Rated for continuous currents up to 600A and system voltages up to 1500VDC, the RXC61 Series features bi-directional switching, integrated coil economization, and mechanically linked auxiliary contacts for reliable position feedback. Designed and assembled in the USA, these contactors are ideal for energy storage systems, electric vehicle battery systems, charging infrastructure, AI data center backup power systems, humanoid robotics, AGV’s, and industrial DC power control.

    CHARACTERISTIC

    MEASURE

    Contact Arrangement

    Form X, SPST- NO

    Max Switching Voltage

    1500 Vdc

    Dielectric Withstand Voltage (Leakage <1mA) Between Open Contacts
    - Between Contacts and Coil

    4300 VRMS (60 sec)

    Mechanical Life

    300,000 cycles

    Continuous Current (300mm2 conductor)

    600A

    Min Insulation Resistance

    100 MΩ @ 1,000V (50 MΩ at end of life)

    Contact Resistance (Max) measured at 200A

    0.3mΩ

    (Typical) measured at 200A

    0.1-.15mΩ

    Operate Time (Max, incl bounce)

    25ms

    Release Time (Max)

    10ms

    Shock - Functional, 1/2 Sine, 11ms

    20 G Peak

    Shock - Destructive, 1/2 Sine, 11ms

    50 G Peak

    Vibration, Sinusoidal (500-2000 Hz Peak)

    15G

    Operating Temperature

    -40˚C to 85˚C (170° max terminal temperature)

    Sealed Contacts

    Exceeds IP69K (hermetically sealed)

    Salt Fog

    MIL-STD-810

    AUXILIARY CONTACTS

    MEASURE

    Contact Arrangement

    SPDT (Normally Open + Normally Closed)

    Continuous Current

    3A / 24 VDC

    Minimum Current

    10mA @ 5V

    ECONOMIZED DUAL COIL (20°C)

    MEASURE

    Nominal Voltage

    12V

    24V

    48V

    Max Voltage

    16V

    32V

    64V

    Pick-up Voltage

    ≥9V

    ≥18V

    ≥36V

    Drop-out Voltage

    ≤6V

    ≤12V

    ≤24V

    Inrush Current, Max (80 ms)

    3.8A

    1.9A

    0.9A

    Coil Current

    0.65A

    0.33A

    0.16A

    Coil Power

    7.8 W

    7.8W

    7.8W
