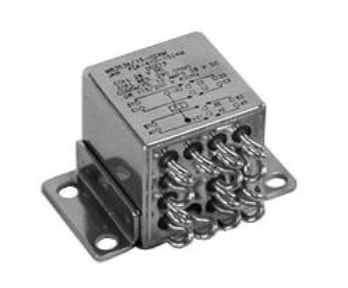

FCB-405

MIL-SPEC Power Relays


  • /media/djcatalog2/images/item/17/fcb-405.jpg
    • NEW !
    Manufacturer: TE Connectivity

    Four-pole, Electrically Held, 5 Amps M83536/5, /6

      • Hermetically Sealed
      • All Welded Construction
      • Balanced Force
      • Permanent Magnet Drive
      • Contacts rated low level to 5 Amps 28 VDC and 115/200 VAC 400 Hz, 3 Phase
      • Weight .93 ounces max. (26.4 grams)
      • Qualified to M83536/5 & /6
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The Series FCB-405 relay is a polarized single-side stable design, where the flux from a permanent magnet provides the armature holding force in the deactivated state, and its flux path is switched and combined with the coil flux in the operated state. This results in appreciably increased contact pressure in both states over that of a spring return nonpolar design.

    For further technical details please refer to datasheet below.
