GN3 Series

Panel Mount AC Output SSRs

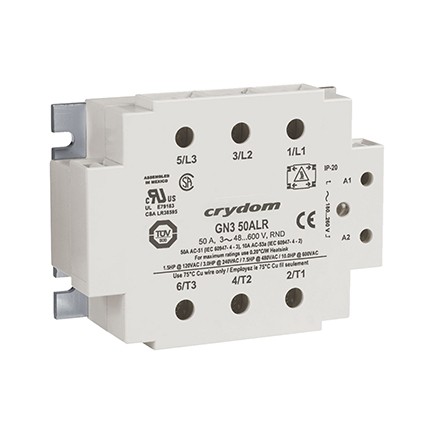

  • /media/djcatalog2/images/item/13/gn3-series.jpg

    Manufacturer: Sensata BEI Kimco

    Panel Mount 3-phase Solid State Relays

      • 25A and 50A at 48-530 VAC
      • IP20 “touch-safe” cover
      • SCR output for heavy industrial loads
      • AC or DC control
      • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
      • LED input status indicator
      • UL/CSA/TUV Approved, CE Compliant to EN60950-1
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The GN3 Series Panel Mount 3-phase Solid State Relays are available with ratings of 25A and 50A at 48-530 VAC.
    Additional features of the GN3 Series include:

    • IP20 “touch-safe” cover
    • SCR output for heavy industrial loads
    • AC or DC control
    • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
    • LED input status indicator
    • UL/CSA/TUV Approved, CE Compliant to EN60950-1
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    GN325DLZ 4-32 VDC 25 A 48-600 VAC
    GN325DSR 4-32 VDC 25 A 48-530 VAC
    GN325DSZ 4-32 VDC 25 A 48-530 VAC
    GN350BSZ 90-140 VAC 50 A 48-530 VAC
    GN350DLR 4-32 VDC 50 A 48-600 VAC
    GN350DLZ 4-32 VDC 50 A 48-600 VAC
    GN350DSR 4-32 VDC 50 A 48-530 VAC
    GN350DSZ 4-32 VDC 50 A 48-530 VAC
