GNA5 Series

Panel Mount AC Output SSRs

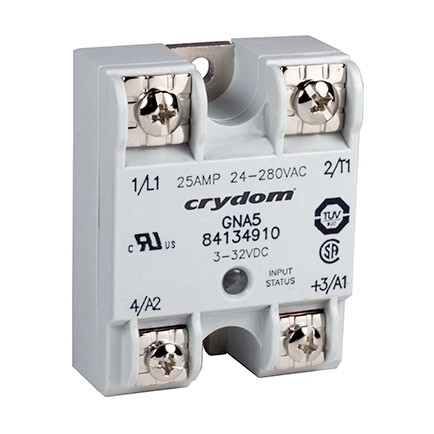

  • /media/djcatalog2/images/item/13/gna5-series.jpg
    • NEW !
    Manufacturer: Sensata BEI Kimco

    Single phase SSRs with TRIAC output, available in IP20 or IP00 protection degree packages

      • 10 Amps up to 25 Amps at 24 to 280 VAC
      • Cost effective TRIAC output
      • UL, CSA and TUV Approved, CE Compliant to EN60950-1
      • Improved SEMS screw and washer
      • Redesigned housing with anti-rotation barriers
      • EMC Compliant to level 3
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    This series offers robust and versatile general-purpose AC output Panel Mount relays. These single phase SSRs use a cost effective TRIAC output and are available in IP20 or IP00 protection degree packages. These new generation solid state relays all feature anti-rotation barriers, LED input status indicator, overvoltage protection, and they are available with quick connect type terminals for reduced installation time. Additional features of the GNA5 Series AC output SSRs include:

    • Current ratings from 10 to 25 Amps
    • Output voltage of 24-280 VAC
    • UL, CSA and TUV Approved, CE Compliant to EN60950-1
    • Improved SEMS screw and washer
    • Redesigned housing with anti-rotation barriers
    • EMC Compliant to level 3
    Part Number Control Voltage Range Maximum Load Current Operating Volage Range
    84134900 3-32 VDC 10 A 24-280 VAC
    84134904 3-32 VDC 10 A 24-280 VAC
    84134907 3-32 VDC 10 A 24-280 VAC
    84134910 3-32 VDC 25 A 24-280 VAC
    84134917 3-32 VDC 25 A 24-280 VAC
    84137900 3-32 VDC 10 A 24-280 VAC
    84137910 3-32 VDC 25 A 24-280 VAC
