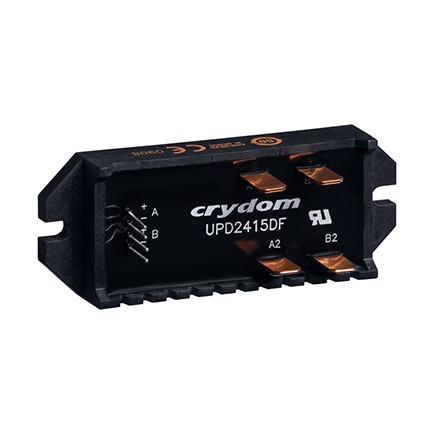

UPD Series | Panel Mount

Panel Mount AC Output SSRs


  • /media/djcatalog2/images/item/13/upd-series-panel-mount.jpg
    • NEW !
    Manufacturer: Sensata BEI Kimco

    Panel Mount 3-phase Solid State Relays

      • 15 to 25 Amps at 24-280 VAC and DC control input
      • Available in single, dual channel and 3-phase configurations
      • UL approved and CE Compliant
      • SCR output for heavy industrial loads
      • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
      • Low Leakage (snubberless) output
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Compact SSRs designed for low-profile applications with convenient 1/4" faston terminals for easy installation. UPD Series relays are available with ratings of 15 to 25 Amps at 24-280 VAC and DC control input.  Additional features of the UPD Series Panel Mount SSRs include:

    • Available in single, dual channel and 3-phase configurations
    • UL approved and CE Compliant
    • SCR output for heavy industrial loads
    • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
    • Low Leakage (snubberless) output
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    GN325DLZ 4-32 VDC 25 A 48-600 VAC
    GN325DSR 4-32 VDC 25 A 48-530 VAC
    GN325DSZ 4-32 VDC 25 A 48-530 VAC
    GN350BSZ 90-140 VAC 50 A 48-530 VAC
    GN350DLR 4-32 VDC 50 A 48-600 VAC
    GN350DLZ 4-32 VDC 50 A 48-600 VAC
    GN350DSR 4-32 VDC 50 A 48-530 VAC
    GN350DSZ 4-32 VDC 50 A 48-530 VAC
