D06D Series

Panel Mount DC Output SSRs

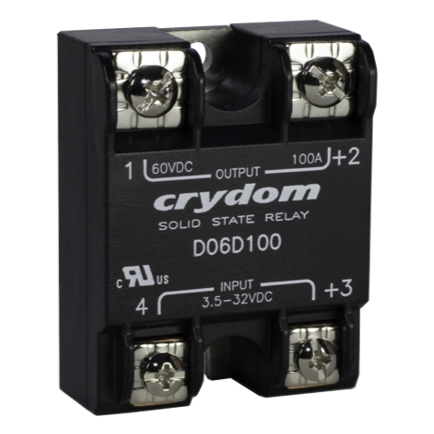

  • /media/djcatalog2/images/item/13/d06d-series.png

    Manufacturer: Sensata BEI Kimco

    Panel Mount DC Solid State Relays with low impedance MOSFET output

      • Panel Mount DC Solid State Relays with low impedance MOSFET output
      • 60A to 100A @ 60 VDC
      • DC control input: 3.5-32 VDC
      • Relays are easily paralleled for higher-current applications
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Sensata | Crydom PowerPlus DC Series Panel Mount DC Solid State Relays expand upon the classic 1-DC Series line with additional features such as an optional clear IP20 “touch safe” cover, LED input status indicator and a high-speed switching circuit. The PowerPlus DC Series panel mount SSR features advanced switching technology utilizing low power dissipation power FETs, which provide reliable high power DC switching up to 100 Amps at operating voltages up to 500 VDC.
    Additional features of PowerPlus DC SSRs include:

    • Flexible 4-32 VDC or 30-60 VDC (500 VDC models only) control input options
    • Level 3 EMC compliant
    • Capable of high surge currents
    • Reduces internal stress with epoxy-free design
    • Up to 1kHz PWM switching capability
    • UL approved, CE compliant to EN60950-1
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    D06D100 3.5-32 VDC 100 A 60 VDC
    D06D60 3.5-32 VDC 60 A 60 VDC
    D06D80 3.5-32 VDC 80 A 60 VDC
