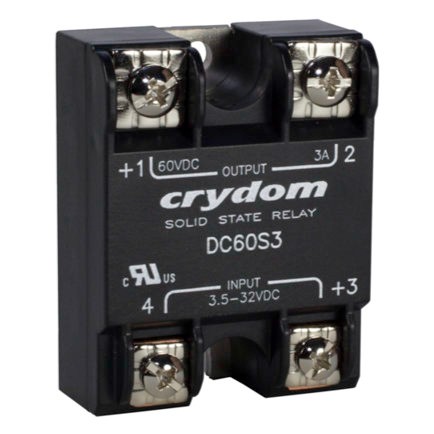

DC60 Series

Panel Mount DC Output SSRs


  • /media/djcatalog2/images/item/13/dc60-series.jpg

    Manufacturer: Sensata BEI Kimco

    Panel Mount DC Solid State Relays with bipolar transistor output

      • Panel Mount DC Solid State Relays with bipolar transistor output
      • Ratings from 3A to 7A @ 60 VDC
      • Flexible AC or DC control input
      • Normally Open or Normally Closed Output
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The DC60 Series are DC Solid State Relays with a cost effective bipolar transistor output in an industry standard panel mount package and ratings up to 7 Amps at 60 VDC.
    Main features of the DC60 Series include:

    • Ratings from 3A to 7A @ 60 VDC
    • Flexible AC or DC control input
    • Normally Open or Normally Closed Output
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    DC60S3 3.5-32 VDC 3 A 60 VDC
    DC60S3-B 3.5-32 VDC 3 A 60 VDC
    DC60S5 3.5-32 VDC 5 A 60 VDC
    DC60S5-B 3.5-32 VDC 5 A 60 VDC
    DC60S7 3.5-32 VDC 7 A 60 VDC
    DC60S7-B 3.5-32 VDC 7 A 60 VDC
    DC60SA3 90-280 VAC 3 A 60 VDC
    DC60SA5 90-280 VAC 5 A 60 VDC
    DC60SA7 90-280 VAC 7 A 60 VDC

    Documentation
