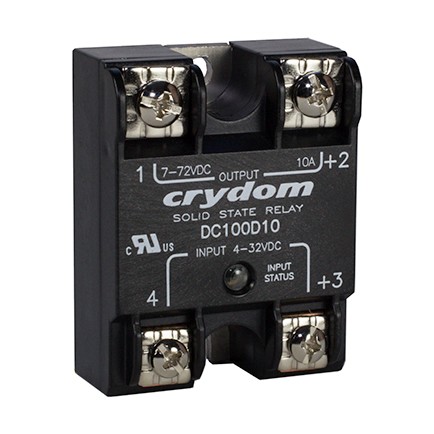

PowerPlus DC Series

Panel Mount DC Output SSRs


  • /media/djcatalog2/images/item/13/powerplus-dc-series.jpg
    • NEW !
    Manufacturer: Sensata BEI Kimco

    Panel Mount DC Solid State Relays

      • Flexible 4-32 VDC or 30-60 VDC (500 VDC models only) control input options
      • Level 3 EMC compliant
      • Capable of high surge currents
      • Reduces internal stress with epoxy-free design
      • Up to 1kHz PWM switching capability
      • UL approved, CE compliant to EN60950-1
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Sensata | Crydom PowerPlus DC Series Panel Mount DC Solid State Relays expand upon the classic 1-DC Series line with additional features such as an optional clear IP20 “touch safe” cover, LED input status indicator and a high-speed switching circuit. The PowerPlus DC Series panel mount SSR features advanced switching technology utilizing low power dissipation power FETs, which provide reliable high power DC switching up to 100 Amps at operating voltages up to 500 VDC.
    Additional features of PowerPlus DC SSRs include:

    • Flexible 4-32 VDC or 30-60 VDC (500 VDC models only) control input options
    • Level 3 EMC compliant
    • Capable of high surge currents
    • Reduces internal stress with epoxy-free design
    • Up to 1kHz PWM switching capability
    • UL approved, CE compliant to EN60950-1
    Part Number Control Voltage Range Maximum Load Current Maximum Operating Voltage
    DC100D100 4-32 VDC 100 A 100 VDC
    DC100D100C 4-32 VDC 100 A 100 VDC
    DC100D20 4-32 VDC 20 A 100 VDC
    DC100D20C 4-32 VDC 20 A 100 VDC
    DC100D40C 4-32 VDC 40 A 100 VDC
    DC100D60 4-32 VDC 60 A 100 VDC
    DC100D60C 4-32 VDC 60 A 100 VDC
    DC200D20C 4-32 VDC 20 A 200 VDC
    DC200D40 4-32 VDC 40 A 200 VDC
    DC200D40C 4-32 VDC 40 A 200 VDC
    DC200D60 4-32 VDC 60 A 200 VDC
    DC200D60C 4-32 VDC 60 A 200 VDC
    DC400D20 4-32 VDC 20 A 400 VDC
    DC400D20C 4-32 VDC 20 A 400 VDC
    DC500D60 4-32 VDC 60 A 500 VDC
    DC500D60C 4-32 VDC 60 A 500 VDC
    DC60D10 4-32 VDC 10 A 60 VDC
    DC60D100 4-32 VDC 100 A 60 VDC
    DC60D100C 4-32 VDC 100 A 60 VDC
    DC60D40 4-32 VDC 40 A 60 VDC
