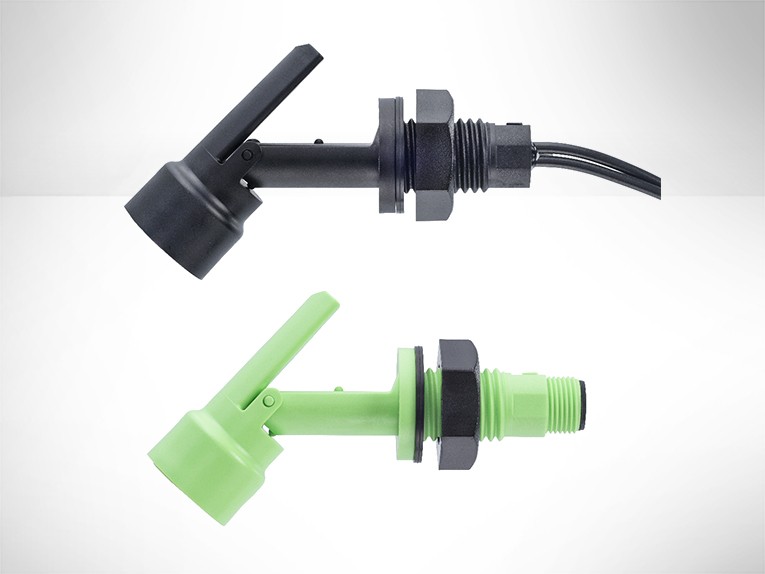

The LLF40 series is designed as a compact internal fitting device, with a wide range of options, making this ideal for size sensitive applications.  Mounting of this series requires access to the inside of the tank. These devices are particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids.  Typical applications include vending machines, commercial washing machines and evaporator units.

They are manufactured in a variety of materials with a choice of gasket materials, to suit most commonly used liquids.

The switch action may be reversed by rotating the device through 180º.

Available with flying leads or M12 socket for electrical connection.  Cable sets with M12 plugs are also available - see LC Series datasheet

Custom versions can be made for particular applications.

	Standard parts	Approvals	Electrical connection	Material	Output	Power capacity
	LLF43H100RF	WRAS	Fly lead	Nylon	SPNO	100VA
	LLF43Y100RF	WRAS	Fly lead	Nylon	SPNO	25VA
	LLF44H100RF	WRAS	Fly lead	Polypropylene	SPNO	100VA
	LLF44Y100RF	WRAS	Fly lead	Polypropylene	SPNO	25VA
	LLF46H100RF	WRAS UL	Fly lead	PPS	SPNO	100VA
	LLF46Y100RF	WRAS UL	Fly lead	PPS	SPNO	25VA
	LLF47Y100GF	UL	Fly lead	PVDF	SPNO	25VA
	LLF47H100GF	UL	Fly lead	PVDF	SPNO	100VA
	LLF47Y100GG	UL	Fly lead	PVDF	SPNO	25VA
	LLF47H100GG	UL	Fly lead	PVDF	SPNO	100VA
	LLF48H100RF	UL	Fly lead	PVDF	SPNO	100VA
	LLF48Y100RF	UL	Fly lead	PVDF	SPNO	25VA
	LLF43HFP	WRAS	M12 connector	Nylon	SPNO	100VA
	LLF43YFP	WRAS	M12 connector	Nylon	SPNO	25VA
	LLF44HFP	WRAS	M12 connector	Polypropylene	SPNO	100VA
	LLF44YFP	WRAS	M12 connector	Polypropylene	SPNO	25VA
	LLF46HFP	WRAS UL	M12 connector	PPS	SPNO	100VA
	LLF46YFP	WRAS UL	M12 connector	PPS	SPNO	25VA
	LLF47YFP	UL	M12 connector	PVDF	SPNO	25VA
	LLF47HFP	UL	M12 connector	PVDF	SPNO	100VA
	LLF47YGP	UL	M12 connector	PVDF	SPNO	25VA
	LLF47HGP	UL	M12 connector	PVDF	SPNO	100VA
	LLF48HFP	UL	M12 connector	Polypropylene (UL)	SPNO	100VA
	LLF48YFP	UL	M12 connector	Polypropylene (UL)	SPNO	25VA
