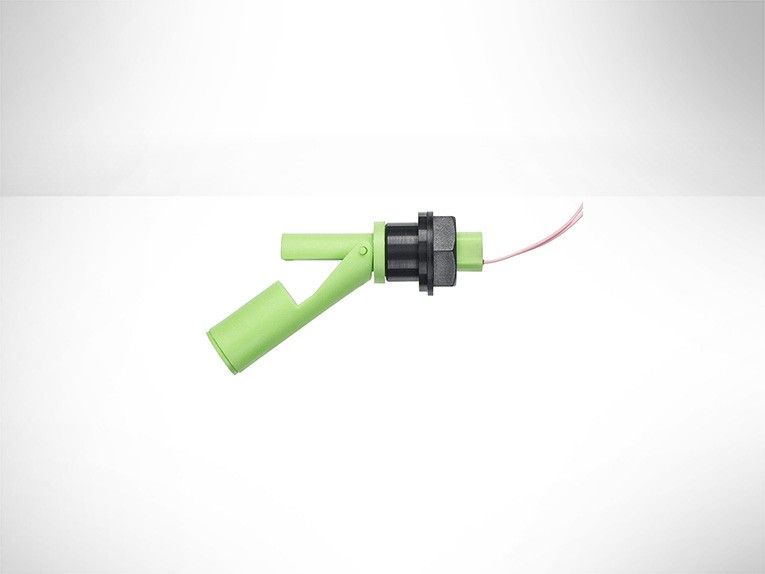

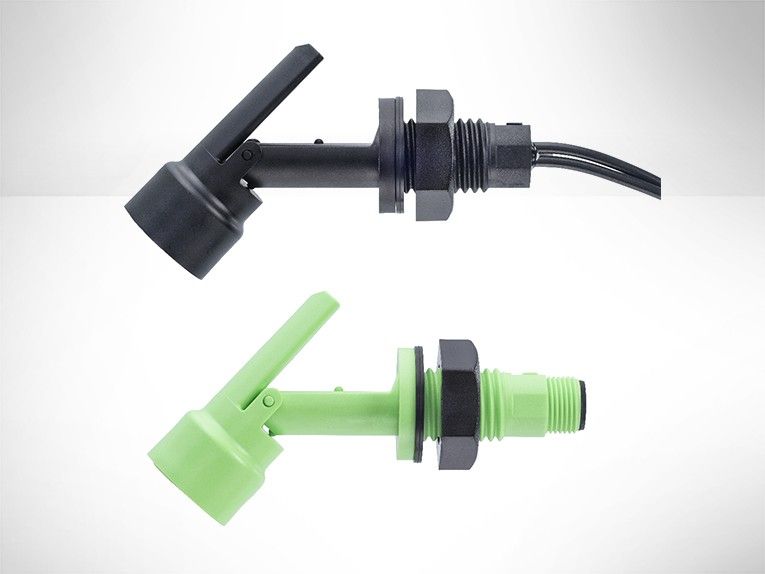

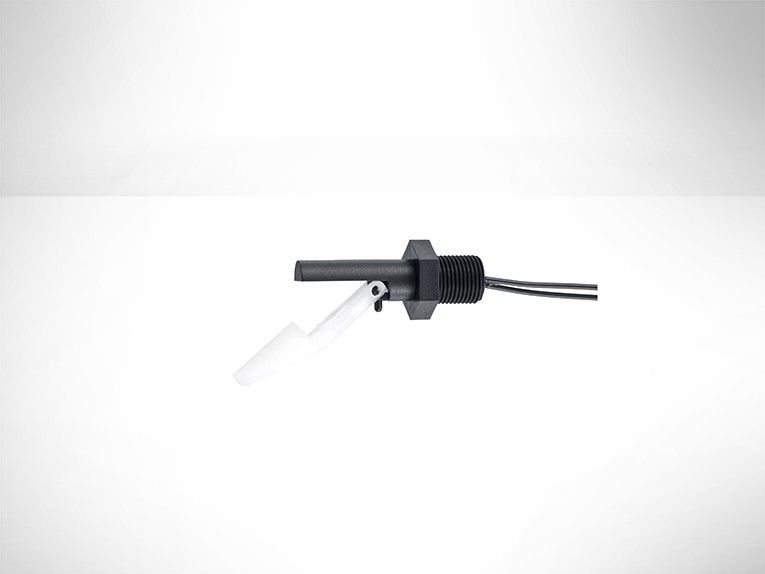

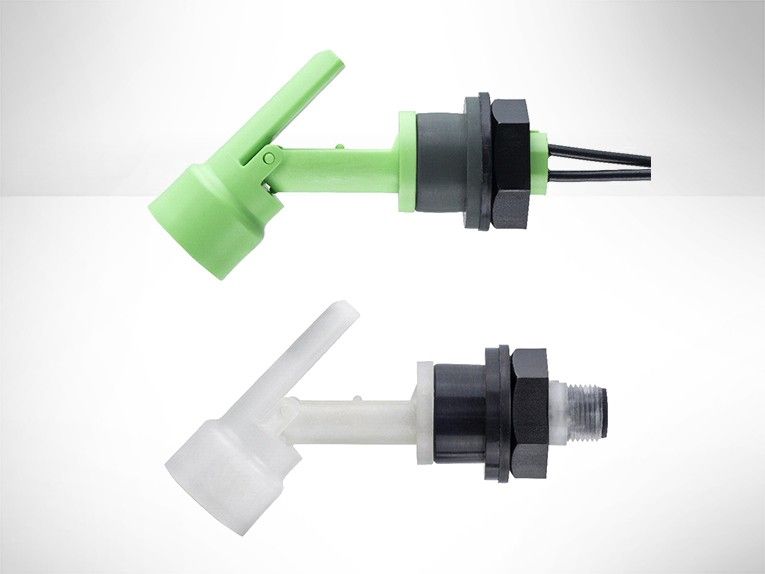

The RSF10 series drop Float Switch has been designed to eliminate problems associated with limescale build up around the pivot point of a conventional float switch. It is also suitable in more viscous liquids, that might affect the pivot action of a standard float type.
The drop float actuator allows the switch housing and float pivots to be located above the surface of the liquid and provides normally closed switch contact, opening as the liquid level rises.

	Standard parts	Approvals	Electrical connection	Material	Mount	Output	Power capacity
	RSF14H100RF	NSF WRAS	Fly lead	Polypropylene	Internal	SPNC	100VA
	RSF14Y050RF	NSF WRAS	Fly lead	Polypropylene	Internal	SPNC	25VA
	RSF14Y100RF	NSF WRAS	Fly lead	Polypropylene	Internal	SPNC	25VA
	RSF16H050TG	WRAS	Fly lead	PPS	Internal	SPNC	100VA
	RSF16H100RF	WRAS	Fly lead	PPS	Internal	SPNC	100VA
	RSF16Y050TG	WRAS	Fly lead	PPS	Internal	SPNC	25VA
	RSF16Y100TG	WRAS	Fly lead	PPS	M16 thread	SPNO	25VA
	RSF16Y100RF	WRAS	Fly lead	PPS	Internal	SPNC	25VA
	RSF18H100RF	UL	Fly lead	Polypropylene	Internal	SPNC	100VA
	RSF18Y100RF	UL	Fly lead	Polypropylene	Internal	SPNC	25VA
	RSF14HFP	WRAS	M12 connector	PPS	Internal	SPNC	100VA
	RSF14YFP	NSF WRAS	M12 connector	Polypropylene	Internal	SPNC	25VA
	RSF16HFP	WRAS UL	M12 connector	PPS	Internal	SPNC	100VA
	RSF16YFP	WRAS	M12 connector	PPS	Internal	SPNC	25VA
	RSF18HFP	UL	M12 connector	Polypropylene (UL)	Internal	SPNC	100VA
	RSF18YFP	UL	M12 connector	Polypropylene (UL)	Internal	SPNC	25VA
