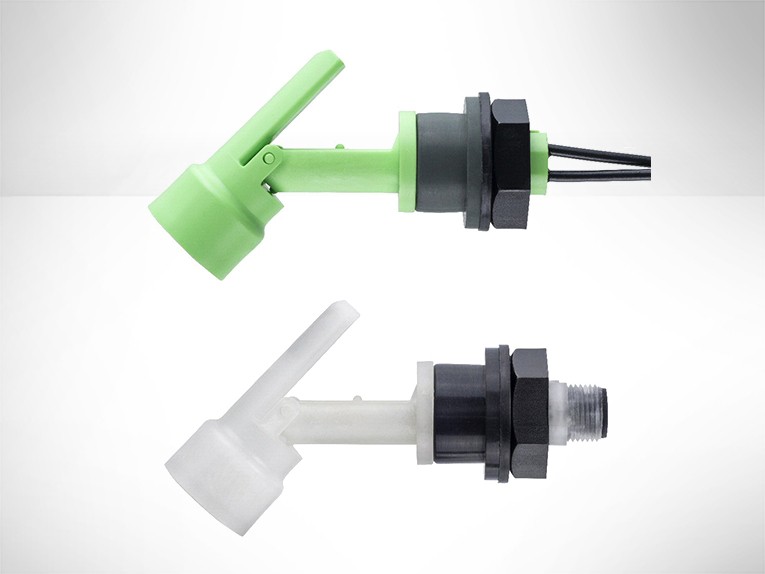

The LLF70 Series is designed for fitting through a tank wall from the outside, where access to the inside for fitting is not possible.

These devices are particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids.  Typical applications include vending machines, commercial dishwashers and auxiliary tanks on vehicles.

These are manufactured in a variety of plastics, with a choice of gasket materials, to suit most commonly used liquids.

The switch action may be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction.

Available with either flying leads or M12 socket for electrical connection.  Cable sets with M12 plugs are also available - see LC Series Datasheet

Custom versions can be made for particular applications.  Please contact Cynergy3 with your requirements.

	Standard parts	Approvals	Electrical connection	Material	Output	Power capacity
	LLF73H100RN	WRAS	Fly lead	Nylon	SPNO	100VA
	LLF73Y100RN	WRAS	Fly lead	Nylon	SPNO	25VA
	LLF73Y100RM	WRAS	Fly lead	Nylon	SPNO	25VA
	LLF74H100RN	WRAS	Fly lead	Polypropylene	SPNO	100VA
	LLF74Y100RN	WRAS	Fly lead	Polypropylene	SPNO	25VA
	LLF74Y100RM	WRAS	Fly lead	Polypropylene	SPNO	25VA
	LLF76H100RN	WRAS UL	Fly lead	PPS	SPNO	100VA
	LLF76Y100RN	WRAS UL	Fly lead	PPS	SPNO	25VA
	LLF77Y100GN	UL	Fly lead	PVDF	SPNO	25VA
	LLF77H100GN	UL	Fly lead	PVDF	SPNO	100VA
	LLF77Y100GV	UL	Fly lead	PVDF	SPNO	25VA
	LLF77H100GV	UL	Fly lead	PVDF	SPNO	100VA
	LLF78H100RN	UL	Fly lead	Polypropylene (UL)	SPNO	100VA
	LLF78Y100RN	UL	Fly lead	Polypropylene (UL)	SPNO	25VA
	LLF73HNP	WRAS	M12 connector	Nylon	SPNO	100VA
	LLF73YNP	WRAS	M12 connector	Nylon	SPNO	25VA
	LLF74HNP	WRAS	M12 connector	Polypropylene	SPNO	100VA
	LLF74YNP	WRAS	M12 connector	Polypropylene	SPNO	25VA
	LLF76HNP	WRAS UL	M12 connector	PPS	SPNO	100VA
	LLF76YNP	WRAS UL	M12 connector	PPS	SPNO	25VA
	LLF77HNP	UL	M12 connector	PVDF	SPNO	100VA
	LLF77YNP	UL	M12 connector	PVDF	SPNO	100VA
	LLF77HVP	UL	M12 connector	PVDF	SPNO	100VA
	LLF77YVP	UL	M12 connector	PVDF	SPNO	25VA
	LLF78HNP	UL	M12 connector	Polypropylene (UL)	SPNO	100VA
	LLF78YNP	UL	M12 connector	Polypropylene (UL)	SPNO	25VA
