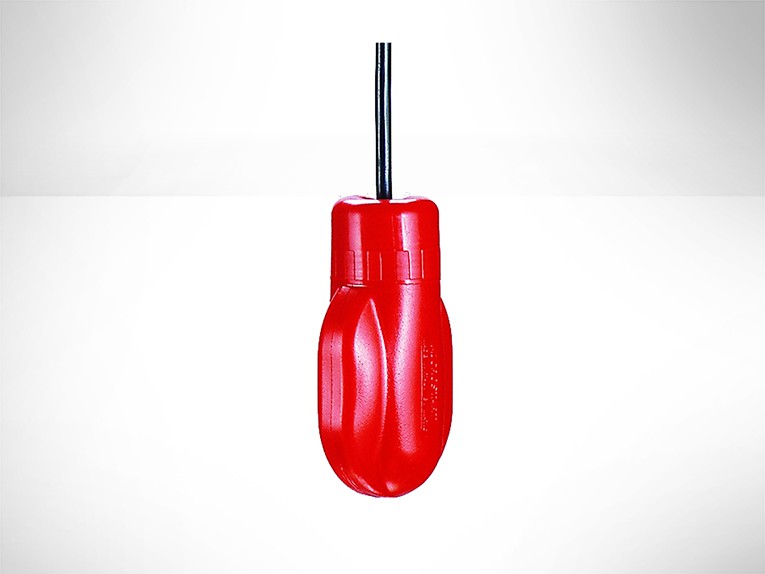

The MS Float Switch series is designed for use in non-turbulent water, with fairly constant ambient temperature, such as in indoor tanks or covered reservoirs. The switching element is a microswitch, having UL, VDE and CENELEC approvals, with either 10 or 20 Amp contacts, activated by a moving ball and having an electrical life of 200,000 operations.

	Standard parts	Action	Cable	Material	Output	Power capacity
	MS10A	Single Level	PVC	HDPE	SPNO	750VA
	MS10AU	Single Level	PU	HDPE	SPNO	750VA
	MS10B	Single Level	PVC	HDPE	SPNC	750VA
	MS10BU	Single Level	PU	HDPE	SPNC	750VA
	MS10C	Single Level	PVC	HDPE	SPDT	750VA
	MS10CU	Single Level	PU	HDPE	SPDT	750VA
	MS20A	Single Level	PVC	HDPE	SPNO	1500VA
	MS20AU	Single Level	PU	HDPE	SPNO	1500VA
	MS20B	Single Level	PVC	HDPE	SPNC	1500VA
	MS20BU	Single Level	PU	HDPE	SPNC	1500VA
	MS20C	Single Level	PVC	HDPE	SPDT	1500VA
	MS20CU	Single Level	PU	HDPE	SPDT	1500VA
